LM-SW09 |
|

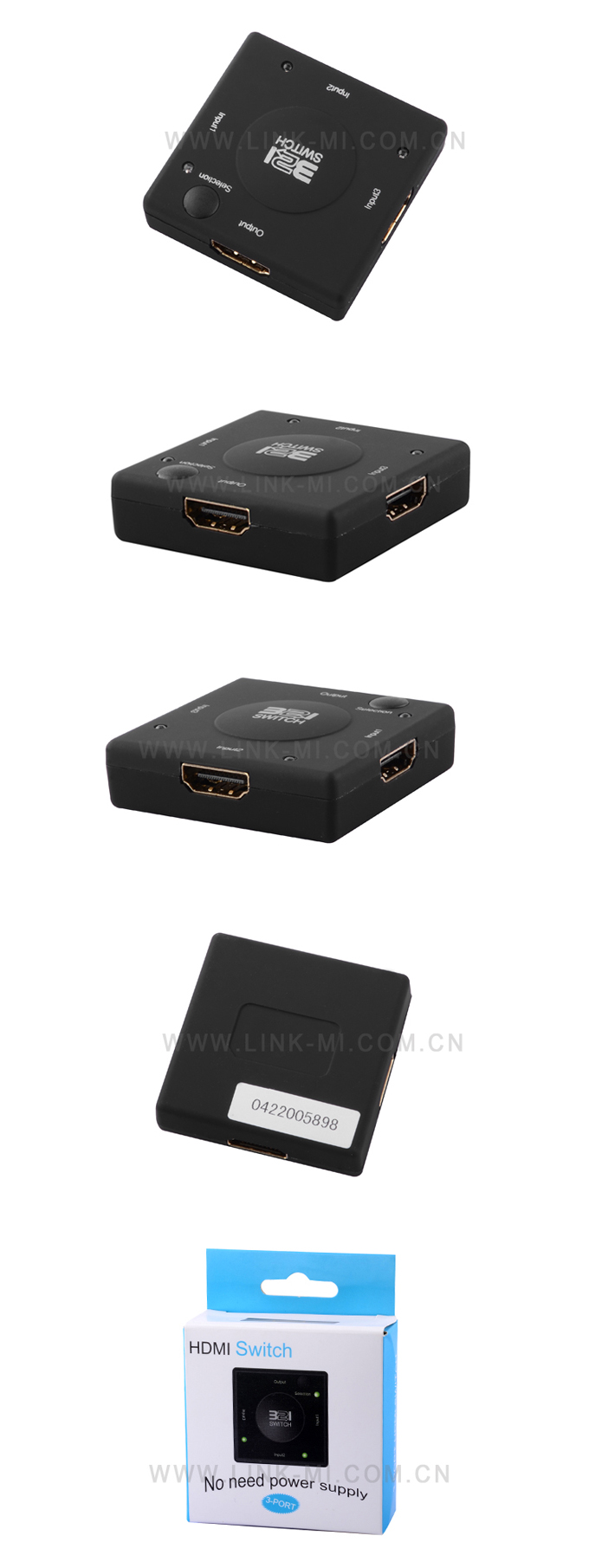

| LINK-MI LM-SW09 Mini 3*1 HDMI Switch 1080p |
| |
Introduction:
1) 3 HDMI inputs,1 HDMI output2) Compact size3) Supports data rates up to 2.7Gbps4) Supports deep color display.5) Supports Resolution up to1080p6) No need DC power7) Easy to install and operate. |
|
|
| |
|
|
|
Specification
|
Brand |
LINK-MI |
|
Model No. |
LM-SW09 |
|
Material |
Metal |
|
Color |
Black |
|
Interface |
HDMI |
|
Application |
Switch 3 HDMI Sources to 1 HDMI display Over HDMI Cable |
|
Operating Temperature Range |
-5 to +35 Degree Celsius ( +23 to +95 Degree Fahrenheit ) |
|
Operating Humidity Range |
5 to 90% RH ( No Condensation ) |
|
Input Video Signal |
0.5 - 1.0 Volts P-P |
|
Input DDC Signal |
5 Volts P-P ( TTL ) |
|
Video Format |
DTV/HDTV: 1080p/1080i/720p/576p/576i/480p/480i |
|
Video Color Format |
XV-YCC Deep Color |
|
Audio Format |
DTS-HD Master Audio, Dolby True-HD |
|
Video Output |
HDMI 1.3 |
|
Data Transfer Speed Rate |
2.7Gbps ( Max. ) |
|
Power Consumption |
4 Watts ( Max. ) |
|
Transmission Distance |
5m( Max. ) Over Standard HDMI Cable |
|
Dimension ( L*W*H ) |
50*50*14mm |
|
Net Weight |
28g |
|
Gross Weight |
40g |
|
Carton Size ( L*W*H ) |
750*750*280mm |
|
Master Carton |
100pcs/CTN |
Packing Contents
1. Main Unit. Mini 3*1 HDMI Swtich
2. 1pcs Operating Instructions |
 |
|
|
|
|
